Deposition

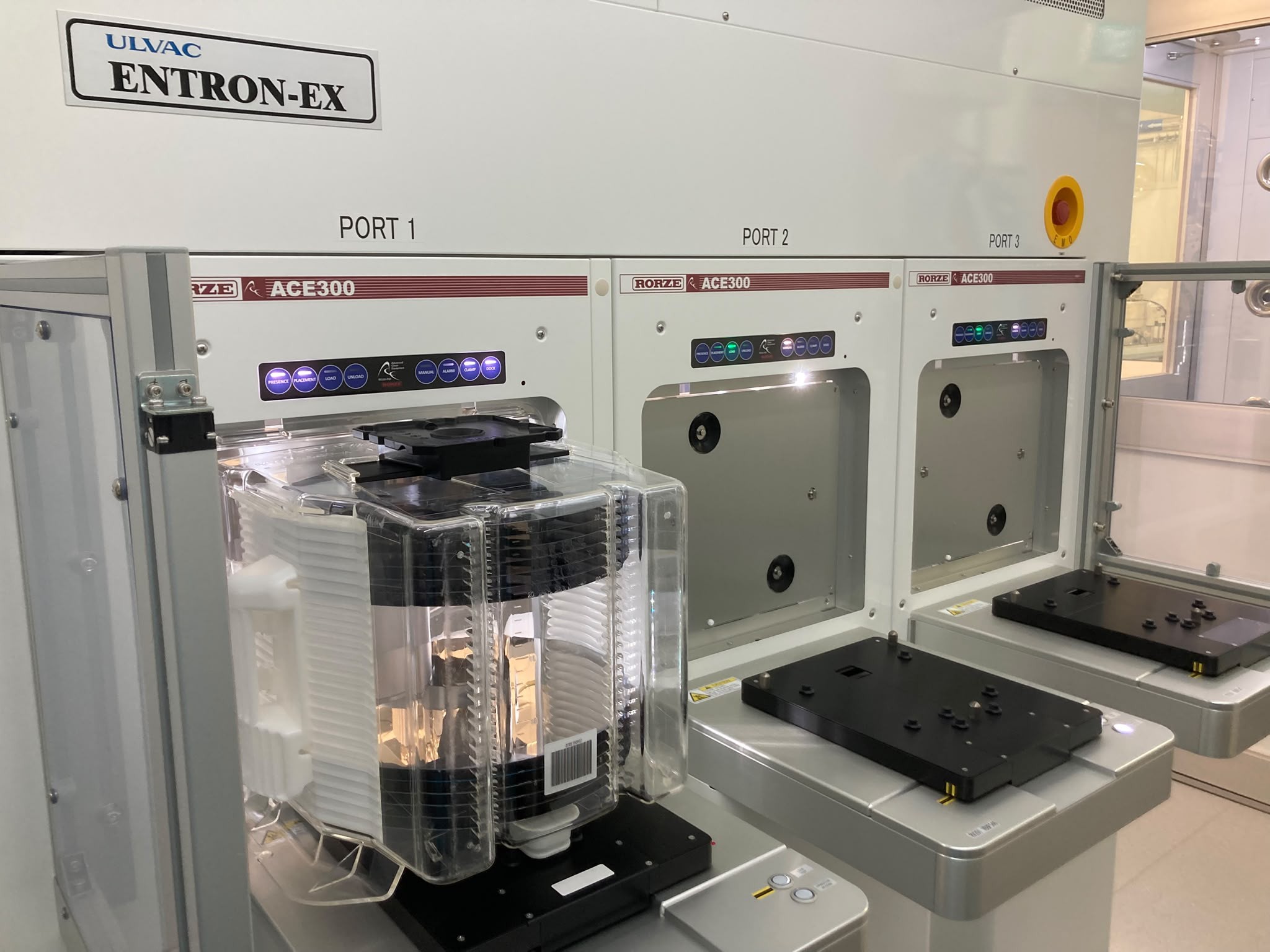

ULVAC ENTRON-EX 300 mm PVD System
High-throughput semiconductor deposition for metal interconnects, patterning masks, electrodes, and functional films.
Deposition
AJA 8–Target UHV MRAM Magnetron Sputtering System
Ultra-high vacuum magnetron deposition system optimized for MRAM and spintronic thin-film stacks.
Deposition

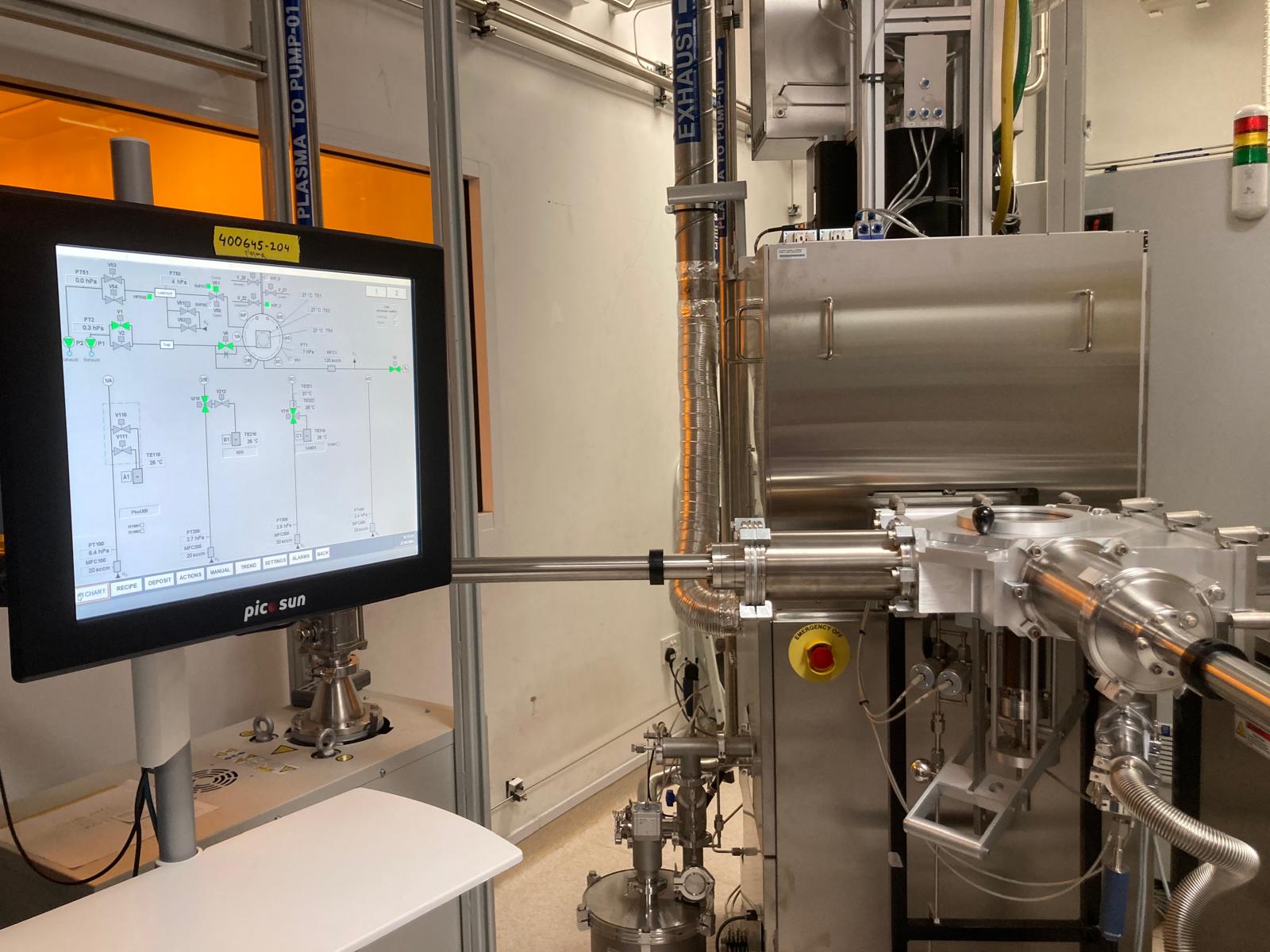

Picosun 200 mm Atomic Layer Deposition Tool
Atomic-scale precision deposition for ultra-thin dielectrics, passivation, and barrier layers with total conformality.
Lithography
Raith e-Line Electron Beam Lithography
High-resolution pattern generator for ultra-fine nanoscale device patterning and prototype fabrication.
Lithography
Raith Voyager Electron Beam Lithography
High-speed, scalable e-beam lithography engineered for spintronic devices, photonics, and sub-10 nm structures.
Lithography
Suss Microtec MJB4 Mask Aligner
Precision optical alignment lithography tool for micro-scale contact printing and multi-level mask patterning.
Etching

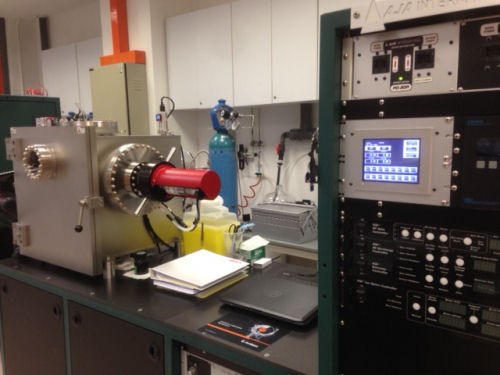

AJA Ion Milling System with Hiden SIMS Detector
Argon ion beam milling equipped with inline secondary ion mass spectrometry for endpoint detection in magnetic stacks.
Etch & CVD
Plasma Therm 200 mm Dual Chamber ICP-RIE System
Dual-chamber tool supporting Inductively Coupled Plasma Reactive Ion Etching (ICP-RIE).
Etch & CVD

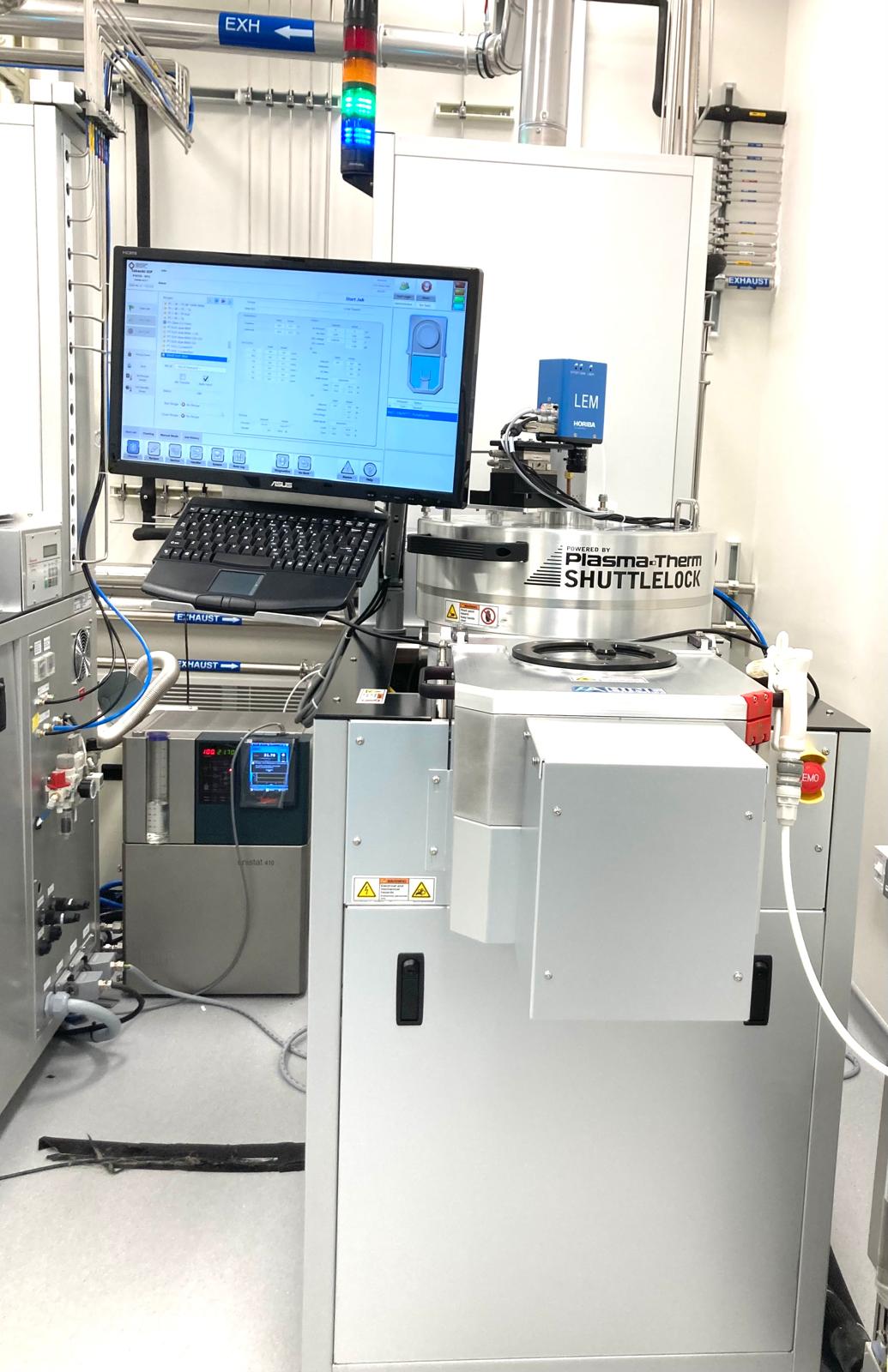

Plasma Therm 200 mm Dual Chamber PECVD System
Dual-chamber tool supporting Plasma-Enhanced Chemical Vapor Deposition (PECVD).
Etch & CVD

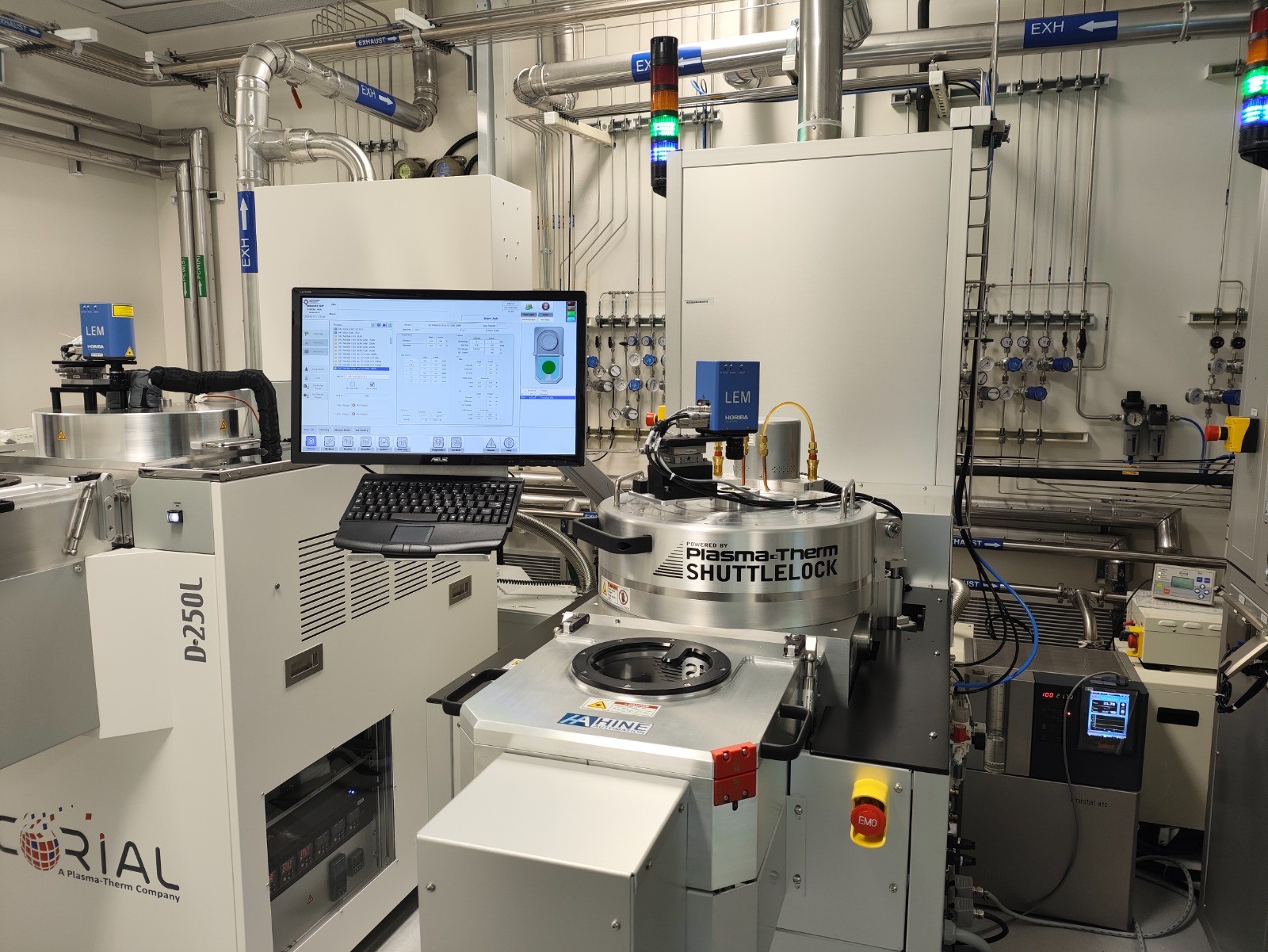

Corial D-250L PECVD System
Designed to deposit uniform, high-quality dielectric layers onto substrates up to 200 mm.
RF Probing
FormFactor (Cascade) Microtech 40GHz RF Probe Station
High-frequency microwave probe station combined with magnetic field application setups for high-speed device dynamics.
Electrical
Keithley 4200A-SCS Semiconductor Parameter Analyzer
Comprehensive I-V, C-V, and ultra-fast pulsed characterization analyzer for memristive, spintronic, and neuromorphic devices.
Microscopy
Park Systems NX10 Atomic Force Microscope
AFM optimized for small-sample nanoscale research and recognized for combining high-accuracy topography data.
Polishing
Logitech CMP Orbis system
Engineered to facilitate IC manufacturing, MEMS, Opto-MEMS, and Bio-MEMS fabrication while supporting development environments requiring production-level accuracy.
Spin Coat
Spin Coating Station
Deposits uniform thin films onto flat substrates, such as silicon wafers, glass plates, or optical lenses.
Annealing
MTI's Compact Split Tube Furnace
Thermal processor for calcination, sintering, chemical vapor deposition (CVD), and annealing.
Wet Processing
Solvent Wet Bench
Engineered for microfabrication and semiconductor processing.
Microscopy
Kerr Microscope
Customized to visualize magnetic domains and magnetization dynamics at the nanoscale.
Magnetic Characterisation
Lake Shore Cryotronics 8600 Series Vibrating Sample Magnetometer (VSM)
To characterize the magnetic properties of solid, liquid, powder, or thin-film samples.
RF Probing

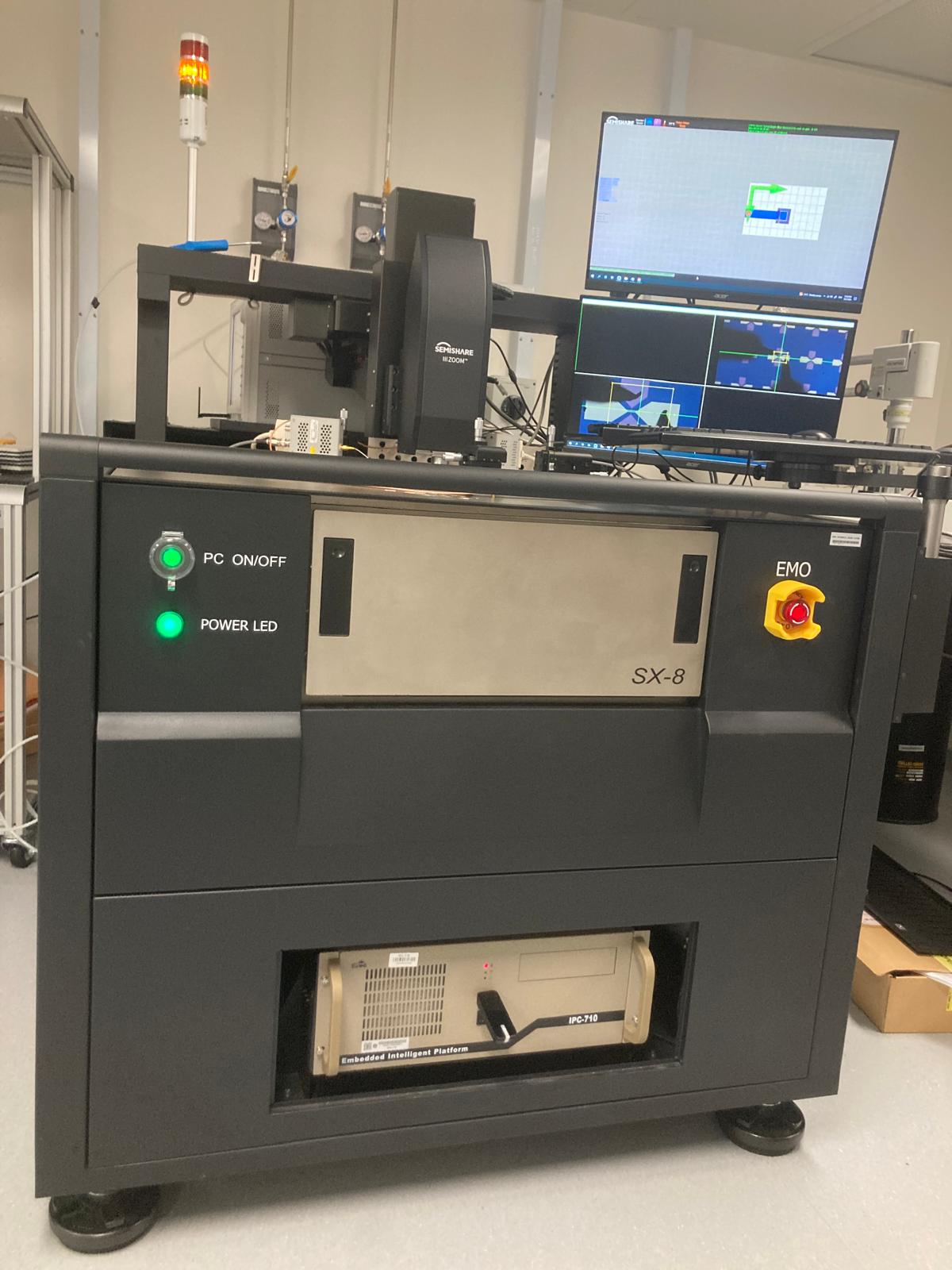

SEMISHARE SX-8 Semi-Automatic Wafer Probe Station
Highly efficient semi-automatic wafer probe platform specialized in testing the performance of various advanced chips.
Magnetic characterisation
VNA-based Ferromagnetic Resonance Spectrometer
Customized to measure and analyze current-induced magnetization dynamics in nanoscopic magnetic systems and thin-film heterostructures.
